Heavy Duty HDD Machines
Heavy duty HDD machines are built for trenchless projects where longer bore paths, larger installation diameters and higher drilling loads exceed the practical range of smaller directional drilling equipment. Their increased thrust, pullback and rotary torque support demanding underground pipeline and infrastructure installations. Synergy Rigs Ghana supplies heavy duty HDD machines for large pipeline crossings, water infrastructure, utility networks and other directional drilling projects requiring greater machine capacity.

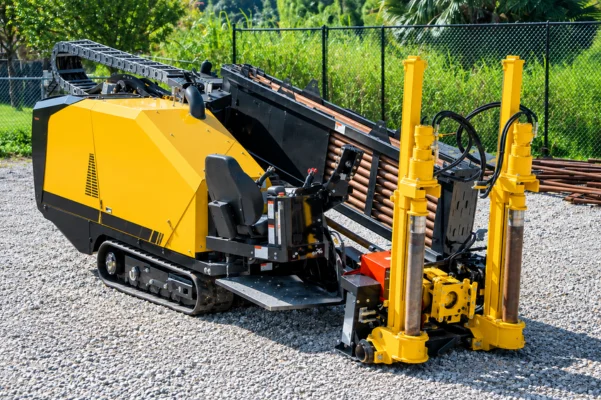

Built for Large-Scale Trenchless Crossings
Heavy-duty directional drilling becomes relevant when projects involve substantial underground distances or larger product pipes.
Typical project requirements can include:
- Major pipeline crossings
- Large water transmission lines
- Industrial utility routes
- Highway crossings
- Wide infrastructure corridors
- Long-distance underground installations
For these projects, the HDD unit must handle the forces generated throughout drilling, bore enlargement and final installation.
Heavy Duty HDD Machines for Large-Scale Trenchless Developments
Large underground installations require more than basic drilling capability. The HDD system must provide sufficient power to create the bore, enlarge it to the required diameter and pull the final product through the completed pathway. Heavy-duty HDD machines are designed around these higher-capacity requirements and can be matched with appropriate rods, reamers, drilling-fluid systems and pullback tooling.
Capabilities of Heavy Duty HDD Systems
High Pullback Capacity
Greater pullback capability helps the machine handle larger products and the forces generated during longer installations.
High Rotary Torque
Higher torque supports pilot drilling and bore enlargement where larger tooling and demanding formations are involved.
Extended Drilling Capability
Heavy-duty systems can be selected for projects requiring longer bore lengths and increased drilling capacity.
Large-Diameter Reaming
The machine can be paired with suitable reamers and tooling for applications requiring larger underground pathways.
High-Capacity Drilling Support
Larger HDD projects often require greater drilling-fluid circulation, tooling capacity and auxiliary equipment.

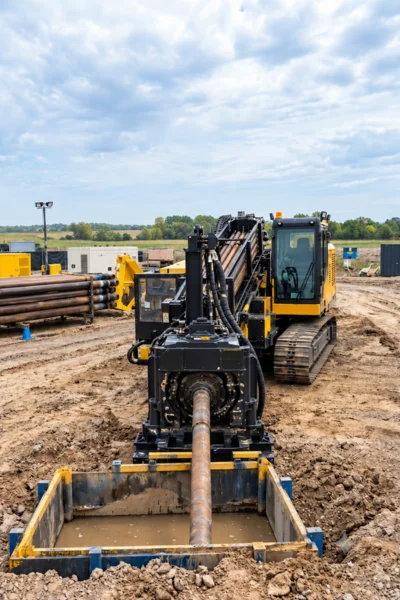

Applications for Heavy Duty HDD Machines
Water Infrastructure
Heavy-duty HDD equipment can support selected water transmission and distribution projects requiring underground pipeline installation across surface obstacles.
Large-Diameter Pipeline Installation
Heavy-duty HDD systems can support selected pipeline installations where larger product diameters require greater reaming and pullback capacity.
Industrial Infrastructure
Large industrial developments may require underground utility corridors, pipelines and conduits that benefit from higher-capacity HDD equipment.
Long-Distance Underground Crossings
Higher-capacity machines can be considered for longer bore routes where increased drilling distance creates greater operational demands.
Gas and Utility Pipelines
Suitable systems can be used for selected gas and utility pipeline crossings where trenchless installation is technically appropriate.
Highway and Major Road Crossings
Heavy-duty HDD provides an option for crossing major transport routes while avoiding continuous open excavation across the surface.
How Heavy Duty HDD Drilling Works
01. Guided Pilot Bore
The HDD machine drives the pilot tooling along the planned underground alignment while the bore direction is monitored and controlled.
02. Product Pullback
The final pipeline, conduit or utility product is connected to the pullback assembly and installed through the prepared bore.
03. Progressive Bore Enlargement
Reaming tools enlarge the pilot bore through one or more stages until the required diameter is achieved.
Heavy Duty HDD Machines for Infrastructure Crossings
Heavy-duty HDD technology can be considered where underground installation needs to pass beneath major surface obstacles.
Highway Crossings
Suitable for selected large-scale road and highway crossings where open excavation would significantly interfere with traffic or existing infrastructure.
Urban Infrastructure
Selected large utility installations can benefit from HDD where surface access is restricted or excavation disruption needs to be controlled.
Railway Crossings
Can support suitable underground utility installations beneath railway corridors subject to project engineering and site conditions.
Industrial Corridors
Heavy-duty systems can support underground utility routes within large industrial and infrastructure developments.
Waterway Crossings
HDD can provide a trenchless approach for selected pipeline crossings beneath rivers and other waterways.
Why Choose Synergy Rigs Ghana for Heavy Duty HDD Machines?
Technical Equipment Support
Synergy Rigs Ghana can assist with identifying suitable HDD equipment and supporting components based on project parameters.
Suitable for Major Infrastructure
The equipment can support selected pipeline, utility, road, industrial and infrastructure-crossing applications.
High-Capacity Equipment Selection
Machine capacity can be matched to larger pipe diameters, longer bore lengths and higher pullback requirements.
Project-Based Machine Matching
Equipment selection considers the complete drilling application rather than relying on a single specification.
Compatible HDD Tooling
Heavy-duty machines can be paired with appropriate rods, reamers, swivels and pullback equipment.
Ground-Condition Consideration
Machine and tooling selection can account for the expected soil, rock and subsurface conditions.
Frequently Asked Questions About Heavy Duty HDD Machines
1. How is a heavy-duty HDD machine different from a compact HDD machine?
Heavy-duty systems provide substantially greater drilling and pullback capacity and are generally intended for larger installations, longer bore lengths and higher-capacity tooling.
2. Can heavy duty HDD machines install large-diameter pipes?
Yes, where the machine, reaming system, ground conditions and pullback capacity are appropriately matched to the required product diameter.
3. How long can a heavy-duty HDD machine drill?
The achievable bore length depends on machine capacity, ground conditions, bore diameter, tooling, drilling-fluid management and the complete bore design.
4. What determines the pullback capacity required?
Pipe diameter, pipe material, product weight, bore length, ground friction, bore condition and installation method all influence the required pullback capacity.
5. Can heavy duty HDD machines drill through rock?
Some heavy-duty HDD systems can be configured for challenging rock conditions using suitable pilot tooling, reamers and drilling methods. Ground conditions should be assessed before equipment selection.
6. What size reamer is required for a heavy-duty HDD project?
Reamer size depends on the pilot bore, final product diameter, ground conditions and required annular clearance. The reaming plan should be established as part of the overall bore design.
7. What supporting equipment is required?
Heavy-duty HDD projects may require large-capacity drill rods, reamers, mud pumps, mixing systems, locating equipment, swivels and product handling equipment.
8. Are heavy duty HDD machines suitable for highway crossings?
Yes. They can be considered for suitable highway and major road crossings where the required bore length, diameter and ground conditions match the equipment capability.
9. What information is needed before selecting a heavy-duty HDD machine?
Important information includes pipe diameter and material, bore length, target depth, ground conditions, crossing type, entry and exit space, required pullback force and installation method.
