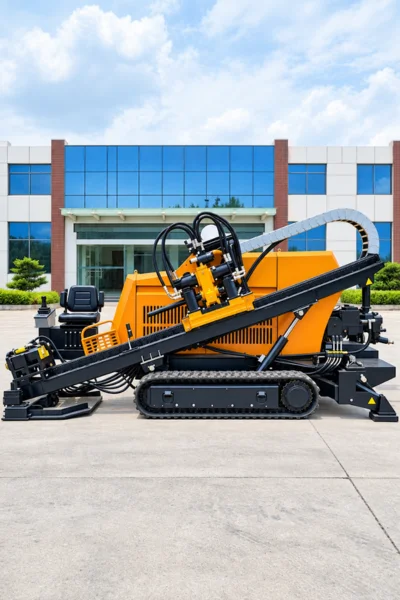

Compact HDD Machines
Compact HDD Machines are designed for horizontal directional drilling projects where working space, equipment access and installation requirements demand a smaller drilling platform. They provide a practical trenchless solution for installing underground utilities across roads, built-up areas and other restricted locations. Synergy Rigs Ghana provides compact HDD equipment for applications where machine footprint, maneuverability, drilling capacity and site accessibility need to be considered together.

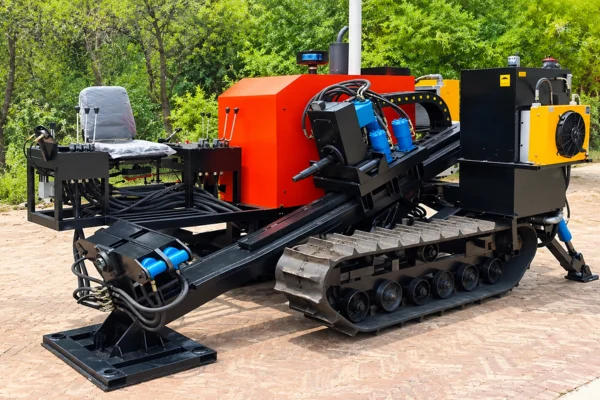

Directional Drilling for Restricted Work Areas
Not every HDD project has enough space for a large drilling unit. Urban utility work, roadside installations and developed sites can limit the area available for machine positioning, drill rods and supporting equipment. Compact HDD machines are designed to provide directional drilling capability while occupying less working space.
They can be considered for:
- Shorter utility crossings
- Roadside drilling
- Water service installations
- Telecom and fibre ducts
- Electrical conduits
- Developed areas
- Sites with restricted equipment access
Compact Size with Project-Matched Drilling Capacity
A smaller machine should still be selected according to the underground installation it needs to complete.
Thrust and Pullback
Thrust supports advancement of the drill string, while pullback capacity becomes important during reaming and final product installation.
Bore Length and Diameter
The planned crossing length and final installation diameter help determine whether a compact machine has sufficient capacity for the project.
Machine Dimensions
Machine width, length and operating footprint become particularly important where access routes and setup areas are restricted.
Rotary Torque
Available torque should correspond with the ground conditions, drilling tools and required bore enlargement.
Applications for Compact HDD Drilling
Water Pipeline Installation
Compact HDD machines can support smaller water pipeline installations beneath roads, driveways and developed areas where open excavation may cause disruption.
Power Cable Conduits
Compact HDD equipment can be used for selected underground electrical conduit installations where controlled trenchless drilling is appropriate.
Telecommunications Infrastructure
They can create underground pathways for fibre-optic and communication conduits across roads and other surface obstacles.
Residential Utility Installation
Smaller HDD systems can support utility connections around residential developments, properties and other locations with limited equipment access.
Road Crossings
Compact machines provide a trenchless option for selected short-distance crossings beneath roads and access routes.
Drainage and Utility Lines
They can support suitable small-diameter underground installations for drainage and other utility networks.
Compact HDD Drilling Process
01. Product Pullback
The selected pipe, conduit or utility product is connected to the tooling and pulled through the prepared bore.
02. Bore Enlargement
Suitable reamers enlarge the pilot hole to the diameter required for product installation.
03. Pilot Bore
The drill head creates a controlled pilot bore along the planned underground alignment.
HDD Machines for Different Infrastructure Projects
Horizontal directional drilling can support infrastructure development where underground installation needs to cross existing surface features or reduce excavation.
Water Infrastructure
Can support selected water pipeline routes where trenchless installation is technically appropriate.
Industrial Projects
Can provide underground installation options within industrial developments and utility networks.
Urban Utility Work
Suitable for selected utility installations where surface disruption needs to be controlled.
Infrastructure Crossings
Can support crossings beneath roads, highways and other transport infrastructure.
Telecommunication Networks
Can facilitate conduit installation for fibre and other communication infrastructure.
Why Choose Synergy Rigs Ghana for HDD Machines?
Technical Equipment Guidance
Synergy Rigs Ghana can help identify an appropriate HDD machine and supporting equipment based on the intended application and site conditions.
Equipment Matched to the Installation
Machine capacity can be considered according to bore length, diameter, ground conditions and required pullback force.
Compact and Heavy-Duty Options
Different machine capacities provide solutions for smaller utility work as well as larger infrastructure installations.
Suitable for Multiple Utility Applications
HDD equipment can support selected water, drainage, power, telecommunications, gas and infrastructure-crossing projects.
Project-Focused Selection
The equipment approach considers the complete installation rather than relying on a single machine specification.
Compatible HDD Tooling
Drill rods, pilot heads, reamers, swivels and other accessories can be matched with the selected HDD system.
Frequently Asked Questions About HDD Machines
1. What does an HDD machine do?
An HDD machine drills a controlled underground path that can be enlarged and used to install a pipe, duct or conduit without opening a continuous trench along the route.
2. What size HDD machine do I need?
Machine size depends on factors including bore length, product diameter, ground conditions, required torque and expected pullback load.
3. Can HDD machines drill under roads?
HDD is used for suitable underground crossings where utilities need to pass beneath roads or other surface areas. The feasibility of a particular crossing depends on site conditions and project design.
4. What tools are used with an HDD machine?
Common equipment includes drill rods, pilot drilling heads, reamers, swivels, pulling accessories, drilling-fluid equipment and locating systems.
5. What information should I provide before requesting an HDD machine?
Provide the intended installation, crossing length, product diameter, expected ground conditions, required bore path and available working area.
6. What is the difference between HDD and open-cut excavation?
Open-cut installation requires a surface trench along the utility route, while HDD creates an underground pathway with excavation generally concentrated at the entry and exit points.
7. What size pipe can an HDD machine install?
Installation diameter depends on the HDD machine, reaming system, ground conditions, product weight and required pullback capacity. Machine selection should be based on the complete installation specification.
8. How long can a horizontal directional bore be?
Bore length depends on the machine's thrust and pullback capacity, ground conditions, bore diameter, tooling, drilling-fluid management and overall project design.
